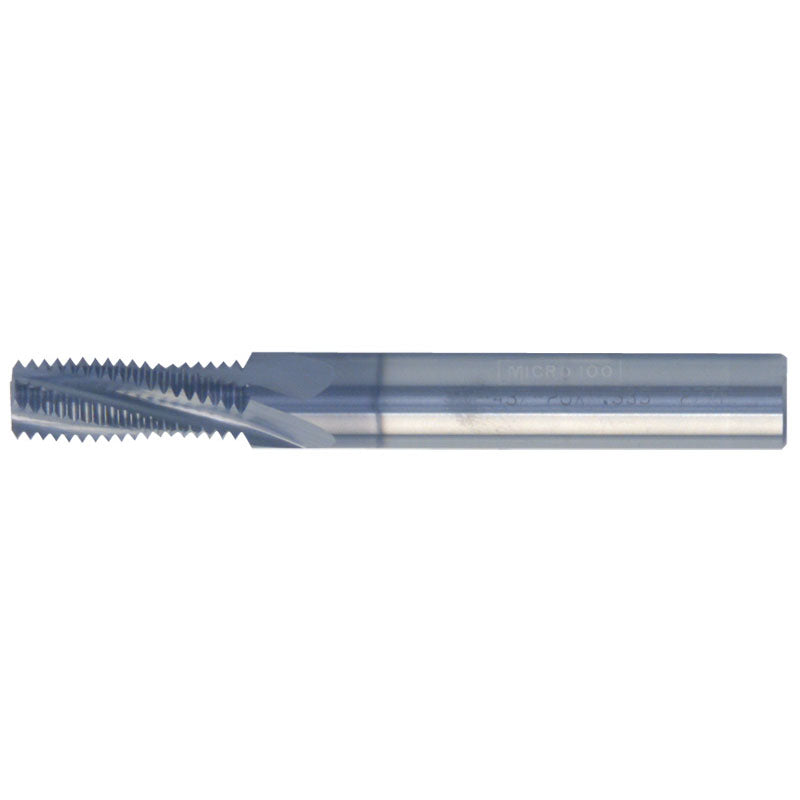

Micro 100 GE45TM11240X 4-40 AlTiN Helical Thread Mill- UN Thread
Short Description
Micro 100 TM-112–40X 4-40 AlTiN Helical Thread Mill- UN Thread
Full Description
Thread Size
4
Overall Length (OAL)
2″
Connection Diameter Machine Side (DCONMS)
1/4″
Flute Count (NOF)
2
Cutting Diameter (DC)
0.08″
Usable Length (LU)
3/16″
• Helical Flute Thread Mills UN Threads • Shank Diameter -.0001 to -.0003″Cutter Diameter ±.0005″Length of Cut +.050 to .000″Overall Length ±.015″T.I.R. Maximum .0005″ • Completely CNC ground. • Helical flute design for reduced cutting forces, smoother cuts, longest tool life, and maximum thread milling performance. • 100% thread form; superior threads vs. tapping. • Cuts right hand and left hand high quality threads. • Suitable for all types of materials, including heat treated and difficult to machine workpieces. • Micro 100: Supplied with AlTiN coating, uncoated thread mills are also available from stock.
