Description

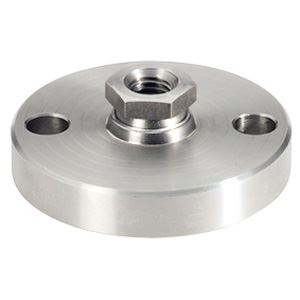

MOUNTING PADS – 22590.0895

Short Description

Mounting Pads, with fastening holes/pad and ball element with bolt from stainless steel | d1=M24 / l1=100 mm | 22590.0895
Halder 22590.0895 Data Sheet

*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Mounting pads can be used as foot or thrust pad. Not parallel bearing surfaces up to 15–‘ degrees can be compensated.

Including two fastening holes in pad.

Material

Ball element with bolt

• Stainless steel 1.4305

Lock nut

• Stainless Steel A2, ISO 4032

Pad

• Stainless steel 1.4305

Notes

For the versions d1 = M10 and M12 the lock nut conforms to DIN 934.

Halder 22590.0895 Data Sheet
