NORTHWESTERN TOOLS 10481SS Smooth – Collared Plunger – All Stainless – Body Length – 4 mm Online

Original price was: $4.99.Current price is: $2.00.

SKU: US-6706539004109 Categories: , Tag:

Description

NORTHWESTERN TOOLS 10481SS Smooth – Collared Plunger – All Stainless – Body Length – 4 mm

Short Description

NORTHWESTERN TOOLS 10481SS Smooth – Collared Plunger – All Stainless – Body Length – 4 mm
Northwestern Part Number: 10481SS
Carr Lane equivalent: N/A

*Please contact [email protected] for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

NORTHWESTERN TOOLS 10481SS Smooth – Collared Plunger – All Stainless – Body Length – 4 mm

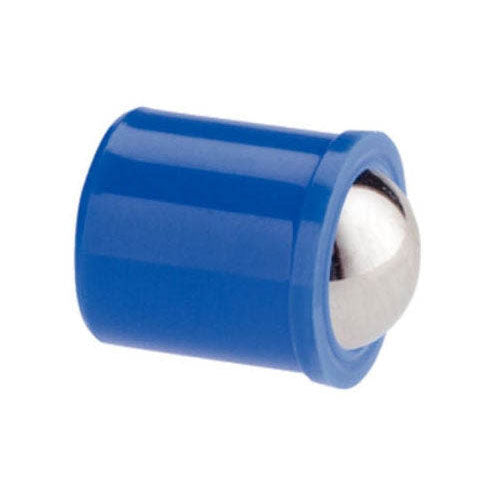

Smooth – Collared Plunger – All Stainless – Body Length – 4 mm

Northwestern Part Number: 10481SS

Carr Lane equivalent: N/A

Product Information

Assembly – A tolerance of H7 is recommended for the locating hole of d1.

Special types on request.

Spring range and forces are precisely tested.

Load pressures are measured in newtons.

Unspecified measurements are in mm.
Smooth – Collared
Part
Number		 d1
+0.1		 d2 d3 l1 l2 Stroke

s

 Spring Load

F1

 Spring Load

F2

 min.

&degC

 max.

&degC

 Location
Hole		 Grams
Body and Ball From Stainless Steel
10480SS 3 2.38 3.5 4.0 0.6 0.70 1.8 3.5 – 250 3 0.20
10481SS 4 3.00 4.6 5.0 0.9 1.00 2.5 6.0 – 250 4 0.30
10482SS 5 4.00 5.6 6.0 0.9 1.40 3.0 6.5 – 250 5 0.60
10483SS 6 5.00 6.5 7.0 1.0 1.80 5.5 11.5 – 250 6 1.00
10484SS 8 6.50 8.5 9.0 1.1 2.40 7.0 12.5 – 250 8 2.10
10485SS 10 8.50 11.0 13.0 1.5 3.30 8.5 18.5 – 250 10 4.40
10486SS 12 10.00 13.0 16.0 2.3 4.00 12.0 26.5 – 250 12 7.30
Body From Thermoplastic, Ball From Stainless Steel
10480D 3 2.00 3.6 4.0 0.6 0.55 1.7 3.5 -30 50 3 0.09
10481D 4 3.00 4.6 5.0 1.0 0.80 3.0 6.5 -30 50 4 0.20
10482D 5 4.00 5.6 6.0 1.0 1.00 6.0 9.4 -30 50 5 0.40
10483D 6 5.00 6.5 7.0 1.0 1.60 6.2 12.6 -30 50 6 0.70
10484D 8 6.50 8.5 9.0 1.0 1.90 10.0 20.4 -30 50 8 1.50
10485D 10 8.00 11.0 13.5 1.5 2.40 11.9 22.3 -30 50 10 3.20
10486D 12 10.00 13.0 16.0 1.5 3.30 14.0 25.0 -30 50 10 5.80
Body and Ball From Thermoplastic
10481D-DB 4 3.00 4.6 5.0 1.0 0.80 3.0 6.5 -30 50 4 0.10
10482D-DB 5 4.00 5.6 6.0 1.0 1.00 6.0 9.4 -30 50 5 0.20
10483D-DB 6 5.00 6.5 7.0 1.0 1.60 6.2 12.6 -30 50 6 0.30
10484D-DB 8 6.50 8.5 9.0 1.0 1.90 10.0 20.4 -30 50 8 0.60
10485D-DB 10 8.00 11.0 13.5 1.5 2.40 11.9 22.3 -30 50 10 1.50
10486D-DB 12 10.00 13.0 16.0 1.5 3.30 14.0 25.0 -30 50 12 2.50
