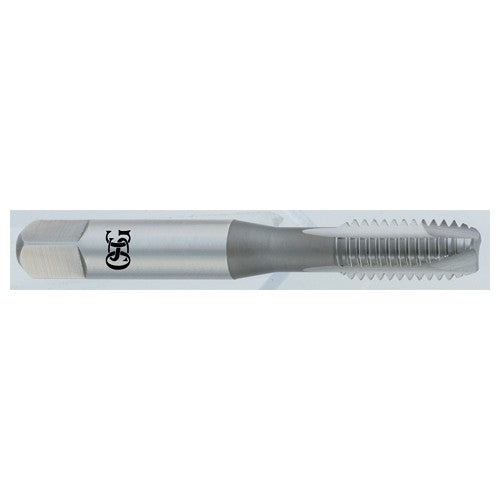

OSG USA, Inc. TP111232401 1/2-13 – 3Fl – H3 – HSS Spiral Pointed Tap-Steam Oxide Discount

Original price was: $16.92.Current price is: $6.77.

SKU: US-6985472606413 Categories: , Tag:

Description

OSG USA, Inc. TP111232401 1/2-13 – 3Fl – H3 – HSS Spiral Pointed Tap-Steam Oxide

Short Description

OSG USA, Inc. TP111232401 1/2-13 – 3Fl – H3 – HSS Spiral Pointed Tap-Steam Oxide

Full Description

Thread Standard NC Cutting Edge Material HSS
Thread Size 1/2″ – 13 Tool Type Spiral Point Tap
Thread Diameter Size (TDZ) 1/2″ Applicable Material Steel | Cast Iron | Aluminum / Non-Ferrous Materials
Threads per Inch (TPI) 13 Connection Diameter Machine Side (DCONMS) 0.367″
Thread Tolerance Class (TCTR) H3 Thread Cutting Part Length (THL) 1-21/32″
Usable Length (LU) 1.374″ End Shape Spiral Point | Chamfer
Overall Length (OAL) 3-3/8″ Style Plug
Chamfer 4P-4.5P Cutting Direction (HAND) Right Hand
Coating Black Oxide Measurement Type Inch
Flute Count (NOF) 3 Series/List # 105

• OSG List No. 105.
