OSG USA, Inc. TP251759001 2-56 H2-2FL-VC10 Steam Oxide-Plug Spiral Point Tap Fashion

Original price was: $47.29.Current price is: $18.92.

SKU: US-6986724835533 Categories: , Tag:

Description

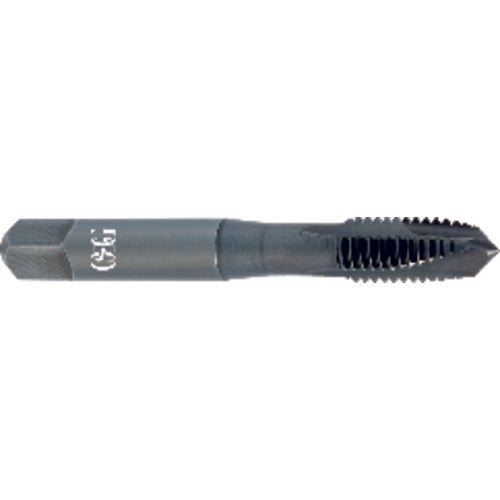

OSG USA, Inc. TP251759001 2-56 H2-2FL-VC10 Steam Oxide-Plug Spiral Point Tap

Short Description

OSG USA, Inc. TP251759001 2-56 H2-2FL-VC10 Steam Oxide-Plug Spiral Point Tap

Full Description

Thread Standard NC Cutting Edge Material VC10
Thread Size #2 – 56 Tool Type High Performance Tap
Thread Diameter Size (TDZ) #2 Applicable Material Hard Materials
Threads per Inch (TPI) 56 Connection Diameter Machine Side (DCONMS) 0.14″
Thread Tolerance Class (TCTR) H2 Thread Cutting Part Length (THL) 7/16″
Usable Length (LU) 0.476″ End Shape Spiral Point
Overall Length (OAL) 1-3/4″ Style Plug
Chamfer 4P-4.5P Measurement Type Wire Gauge
Coating Black Oxide Series/List # 312
Flute Count (NOF) 2

Remarks
• VC-10 Spiral Pointed Plug Style• Steam oxide Finish• Specially designed for difficult-to-machine materials• 400 & 17–4ph Stainless steel• Hardened steel up to 45 HRC• 4140, 4330 Alloy steels• 6AL4V (30HRC) Titanium• Inconel
