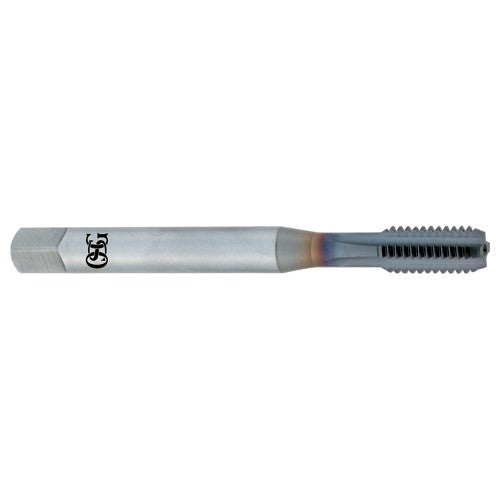

OSG USA, Inc. TP291105300708 M14 1.50 Dia-D7-5 FL- VC10 TiCN-Bottoming Straight Flute Tap
Short Description
OSG USA, Inc. TP291105300708 M14 1.50 Dia-D7-5 FL- VC10 TiCN-Bottoming Straight Flute Tap
Full Description
Thread Diameter Size (TDZ)
M14
Special Feature
DIN Length
Thread Pitch (TP)
1.5 mm
Tool Type
High Performance Tap
Thread Standard
Metric
Chamfer
1.5P-2P
Overall Length (OAL)
100 mm
Coating
TiCN
Thread Cutting Part Length (THL)
1-21/32″
Flute Type
Straight
Usable Length (LU)
50 mm
End Shape
Chamfer
Connection Diameter Machine Side (DCONMS)
10.89 mm
Style
Bottoming
Flute Count (NOF)
5
Coolant Supply Property (CSP)
Coolant Thru
Applicable Material
Cast Iron | Aluminum / Non-Ferrous Materials
Measurement Type
Metric
Cutting Edge Material
VC10
Series/List #
11053
Thread Tolerance Class (TCTR)
D7
Thread Size
M14 x 1.5
Remarks
• EXOTAP DC Oil Bottom Taps• DIN Overall length Coolant thru • VC10 material to achieve high-speed tapping & long tool life• TiCN Coated• Designed for tapping cast aluminum and cast iron. Provides excellent tool life. Recommended use with synchronized spindle.
